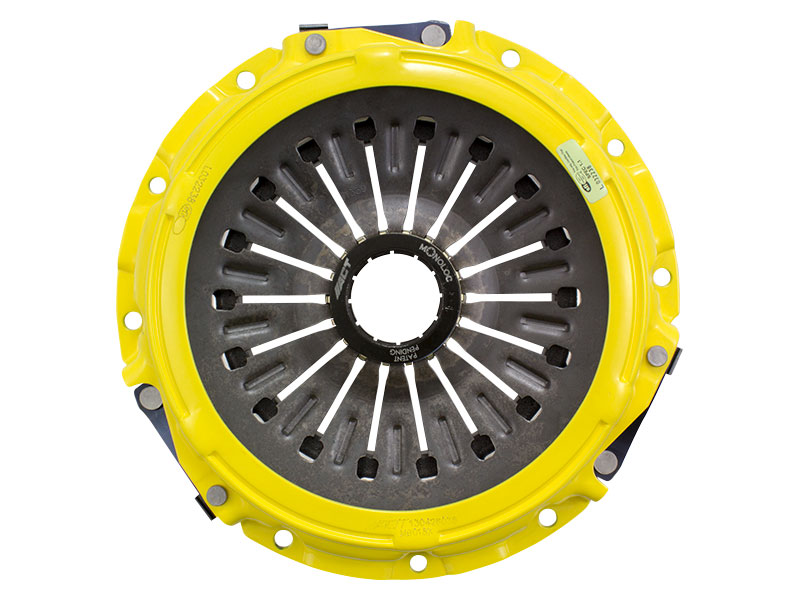

ACT Pressure Plate Xtreme Mitsubishi Evolution 2003-2006
Part Number
MB018X
Vehicle Fitment
Mitsubishi Evolution 2003-2006
Product Description
ACT Xtreme Pressure Plates offer a big increase of clamping load from 50-120% stiffer than stock leaving you with a large increase in clutch performance and a stiffer clutch pedal.
- ACT pressure plates are available in a variety of designs, including all factory push, pull, crimp, and rivet designs.
- ACT pressure plates feature a special, single-diaphragm design to dramatically increase clamp load without the adverse effects of double-diaphragm type clutches.
- Effective diaphragm designs are used to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure and exclusive four-stage, heat treating process for unparalleled performance.
- All castings are CNC-machined for greater consistency and precision.
- Cover stampings are sometimes reinforced by ACT to reduce flex and improve the efficiency and feel of the pressure plate.
- Stronger drive straps and rivets are used when needed to strengthen the pressure plate and prevent breakage.
- All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM.
- A load test for every pressure plate is performed on a special computerized testing press for quality assurance. This same machine also assists in designing new products and evaluating parts that are in for service.
- Proper release travel, clamp load, pedal effort and working range are analyzed using specialized testing equipment and software.
- Most ACT pressure plates are certified as meeting SFI Specification 1.1 and are legal for competition in all racing organizations where SFI certification is required.
Manufacturer
ACT - Advanced Clutch Technology
Address: 206 East Avenue K-4 Lancaster, CA 93535
Phone: 661. 940.7555
Warranty
ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of ninety (90) days from retail purchase. Please see AdvancedClutch.com for more details.
ACT Limited Warranty
