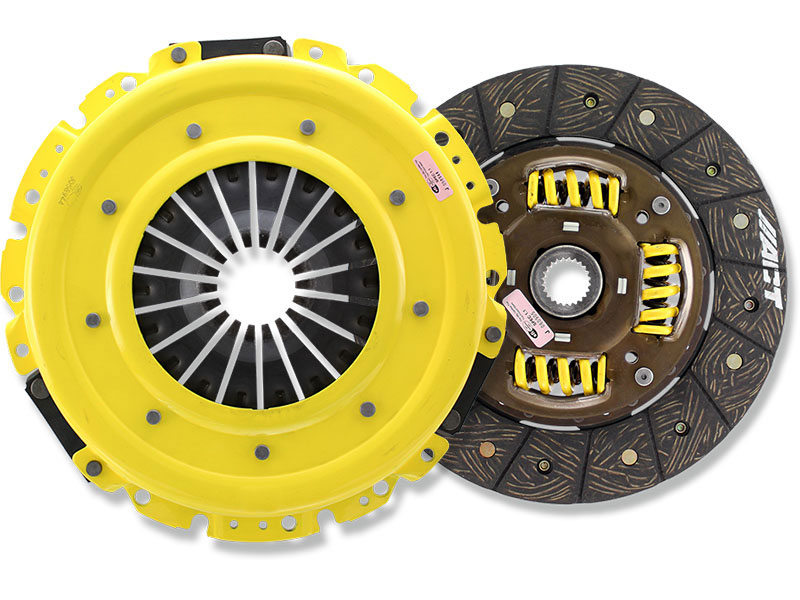

ACT Clutch Kit Xtreme PP Street Performance Disc Sprung Nissan 350Z 2003-2006
Part Number
NZ1-XTSS
Vehicle Fitment
Nissan 350Z 2003-2006
Product Description
ACT Xtreme Pressure Plates offer a big increase of clamping load from 50-120% stiffer than stock leaving you with a large increase in clutch performance and a stiffer clutch pedal.
- ACT pressure plates are available in a variety of designs, including all factory push, pull, crimp, and rivet designs.
- ACT pressure plates feature a special, single-diaphragm design to dramatically increase clamp load without the adverse effects of double-diaphragm type clutches.
- Effective diaphragm designs are used to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure and exclusive four-stage, heat treating process for unparalleled performance.
- All castings are CNC-machined for greater consistency and precision.
- Cover stampings are sometimes reinforced by ACT to reduce flex and improve the efficiency and feel of the pressure plate.
- Stronger drive straps and rivets are used when needed to strengthen the pressure plate and prevent breakage.
- All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM.
- A load test for every pressure plate is performed on a special computerized testing press for quality assurance. This same machine also assists in designing new products and evaluating parts that are in for service.
- Proper release travel, clamp load, pedal effort and working range are analyzed using specialized testing equipment and software.
- Most ACT pressure plates are certified as meeting SFI Specification 1.1 and are legal for competition in all racing organizations where SFI certification is required.
ACT Performance Street Discs are the most popular street disc application. Performance clutch discs offer premium friction material for high heat tolerance. The discs feature higher burst strength due to steel backed linings. Quicker shifting and engagement along with increased strength and reliability are a sure thing.
Premium ceramic friction materials provide high heat tolerance, high coefficient of friction and low ear rates.
- All friction pads are measured, sorted and matched before assembly to ensure that each disc is uniform in thickness.
- Carefully broached splines to ensure exact fit onto the transmission input shaft for long spline life and better clutch release.
- ACT provides thicker retainer stampings for increased strength and reliability.
- Top grade rivets are used to securely fasten the part together. Rivet design and rivet materials are carefully selected for maximum strength.
- ACT spring retainers feature wraparound spring windows that provide support and reduce stress concentrations, which are common causes of failure.
- Heavy duty torsional dampening springs are stronger in most cases than standard springs and are provided in the best sizes and spring rates to suit the application.
- All drive plates consist of high-carbon spring steel that is heat-treated and black zinc-plated to resist bending, cracking, fatiguing and rusting, even under severe racing conditions.
- Precision stampings for disc components are manufactured using dedicated tooling. This allows ACT to offer the highest in quality and consistency.
- Most spring-centered assemblies use bushings and cone springs to create frictional dampening, which reduces noise and extends clutch life.
- All race discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
Manufacturer
ACT - Advanced Clutch Technology
Address: 206 East Avenue K-4 Lancaster, CA 93535
Phone: 661. 940.7555
Warranty
ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of ninety (90) days from retail purchase. Please see AdvancedClutch.com for more details.
